Basic Product Description:
The steel wire rope core conveyor belt is widely used in long distance, high strength, high speed and heavy load transportation of materials with the advantages of high tensile strength, good impact resistance, long service life, etc.
Main Technical Specifications
| Main Technical Parameters of Steel Wire Core Conveyor Belt Implementing Standard National Standard GB/T9770 | |||||||||||||
| Project | Number of wire rope roots | Width specification/mm | Minimum Roller Diameter/mm | ||||||||||
Longitudinal Tensile Strength N/mm | Maximum nominal diameter of wire rope /mm | Wire rope spacing ±1.5mm | Overburden thickness /mm | Thickness of underlying overburden/mm | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | |||
| St630 | 630 | 3.00 | 10 | 5 | 5 | 75 | 95 | 113 | 133 | 151 | 500 | ||
| St800 | 800 | 3.50 | 10 | 5 | 5 | 75 | 95 | 113 | 133 | 151 | 171 | 500 | |
| St1000 | 1000 | 4.00 | 12 | 6 | 6 | 63 | 79 | 94 | 111 | 126 | 143 | 630 | |
| St1250 | 1250 | 4.50 | 12 | 6 | 6 | 63 | 79 | 94 | 111 | 126 | 143 | 800 | |
| St1600 | 1600 | 5.00 | 12 | 6 | 6 | 63 | 79 | 94 | 111 | 126 | 143 | 1000 | |
| St2000 | 2000 | 6.00 | 12 | 8 | 6 | 63 | 79 | 94 | 111 | 126 | 143 | 1000 | |
| St2500 | 2500 | 7.20 | 15 | 8 | 6 | 50 | 64 | 76 | 89 | 101 | 114 | 1250 | |
| St3150 | 3150 | 8.10 | 15 | 8 | 8 | 50 | 64 | 76 | 89 | 101 | 114 | 1400 | |
| St3500 | 3500 | 8.60 | 15 | 8 | 8 | 50 | 64 | 77 | 90 | 104 | 117 | 1600 | |
| St4000 | 4000 | 8.90 | 15 | 8 | 8 | 50 | 64 | 77 | 90 | 104 | 117 | 1600 | |
Marking of Conveyor Belt with Wire Core for General Purpose

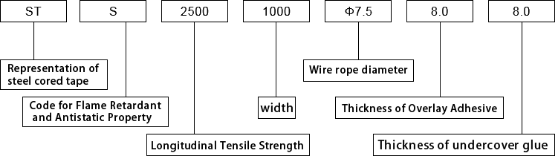

Flame Retardant Steel Core Conveyor Belt Marking
Performance Grade of Covering Rubber | |||
Performance grade | Tensile strength | Tensile ratio at break | Wear volume ≦mm³ |
W | 18 | 400 | 90 |
X | 25 | 450 | 120 |
Y | 20 | 400 | 150 |
K* | 20 | 400 | 200 |
Notes:* | |||
